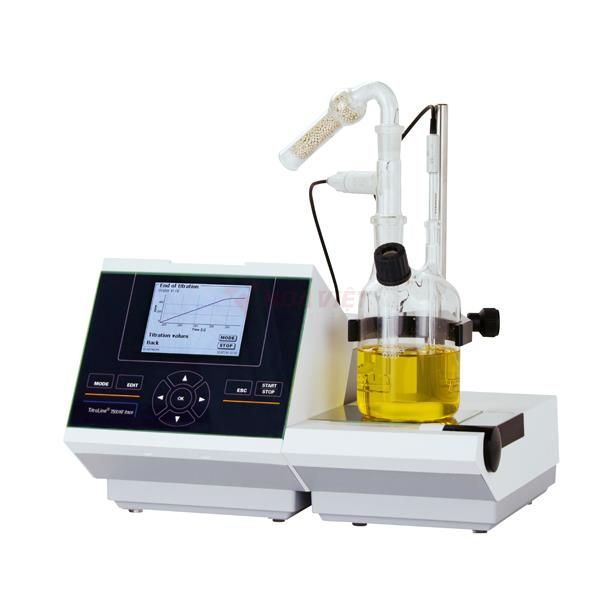

SI Analytics TitroLine 7500 KF Trace Karl Fischer titrator

SI Analytics TitroLine 7500 KF Trace Karl Fischer titrator

SKU: 285220860

Brand

SI Analytics - Germany

Quantity

Need consultation?

The SI TitroLine 7500 KF Trace Karl Fischer titrator is a compact, easy-to-use coulometric Karl Fischer titrator specifically designed for determining trace water content in solid and liquid samples. Featuring high sensitivity and excellent accuracy, this instrument is the ideal choice for industries such as pharmaceuticals, fine chemicals, electronics, petrochemicals, and research samples requiring trace moisture determination.

Configuration list for TL 7500 KF Trace:

🧪 Module 1 – Part no.: 285220860

Configuration includes:

Basic unit

TZ 1752 generating electrode (without diaphragm)

Connection cable for TM 235, TM 235 KF or TM 235 TO

TZ 3835 USB keyboard

TZ 1749 titration vessel clamp

TZ 1748 stand rod

100–240 V power supply

TM 235 magnetic stirrer

TZ 1751 titration vessel

KF 1150 micro double platinum electrode

🧪 Module 2 – Part No.: 285220870

Configuration includes:

Similar to Module 1, but replacing the magnetic stirrer with:

TM 235 KF titration stand with integrated magnetic stirrer and pump

TZ 1754 titration vessel

🧪 Module 3 – Part No.: 285220880

Configuration includes:

Basic unit

TZ 1753 generating electrode (with diaphragm)

Connection cable, keyboard, vessel clamp, stand rod, power supply

TM 235 magnetic stirrer

TZ 1751 titration vessel

KF 1150 electrode

🧪 Module 4 – Part No.: 285220890

Similar configuration to Module 3, but replacing the stirrer with:

TM 235 KF titration stand with integrated magnetic stirrer and pump

TZ 1754 titration vessel

🧪 Module 5 – Part No.: 285221000

Special configuration for use with manual KF oven (TZ 1052):

Basic unit

TZ 1752 electrode without diaphragm

TM 235 magnetic stirrer

TZ 1754 titration vessel

KF 1150 electrode

Not compatible with TO 7280 oven

🧪 Module 6 – Part No.: 285227800

Upgraded version integrated with TO automatic KF oven:

Basic unit

TZ 1752 electrode with diaphragm

TM 235 TO stand: integrated magnetic stirrer, pump, pressure regulating valve

Gas flow meter, 100 sample vials, crimper

Catchpot, clamp, keyboard, power supply, TZ 1754 titration vessel

KF 1150 electrode

🧪 Module 6 – Pharma Version – Part No.: 285227810

Similar to Module 6, with additional TitriSoft 3.5 P software (GLP/GMP compliant, suitable for pharmaceutical analysis)

Specifications:

Indicator electrode input

Connection for double platinum electrode with 2 × 4 mm sockets

Generator electrode input

2 × 4 mm sockets, color-coded

Interfaces

3 × USB (2 × USB-A, 1 × USB-B), 2 × RS-232-C, 1 × LAN

Display

3.5-inch TFT color display (1/4 VGA), 320 × 240 pixel resolution

Housing material

Polypropylene

Dimensions (W x H x D)

15,3 × 18 × 29,6 cm

Front keypad

Polyester-coated

Weight

2,3 kg (excluding TM 235 or TM 235 KF magnetic stirrer)

Ambient operating conditions

Temperature: +10 … +40 °C
Relative humidity: max. 80% at 31 °C, decreasing linearly to 50% at 40 °C (acc. to EN 61010, Part 1)

Power supply

100–240 V; 50/60 Hz; power consumption: 30 VA

CE conformity

EMC acc. to Directive 2004/108/EG
Low voltage safety acc. to Directive 2006/95/EG
Compliant with EN 61326-1:2006 and EN 61010, Part 1

⚙️ Specifications – TM 235 magnetic stirrer

Power supply

TZ 1855 power supply unit

Maximum vessel capacity

Max. 500 ml

Stirring speed

Continuously adjustable from 500 to 2000 rpm

Compatibility

For TitroLine® 7XXX and TITRONIC® 500 models
